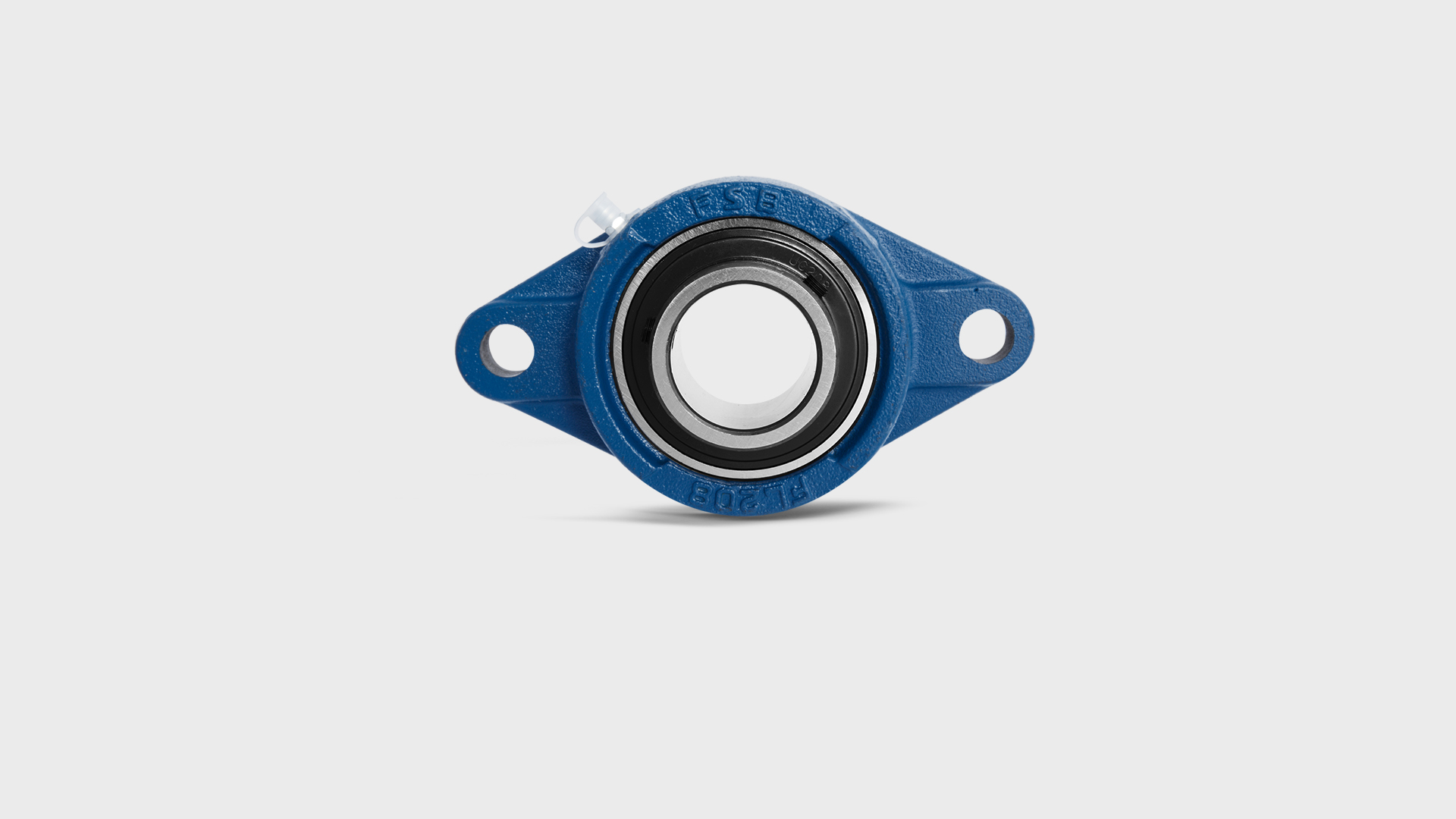

UCFL200

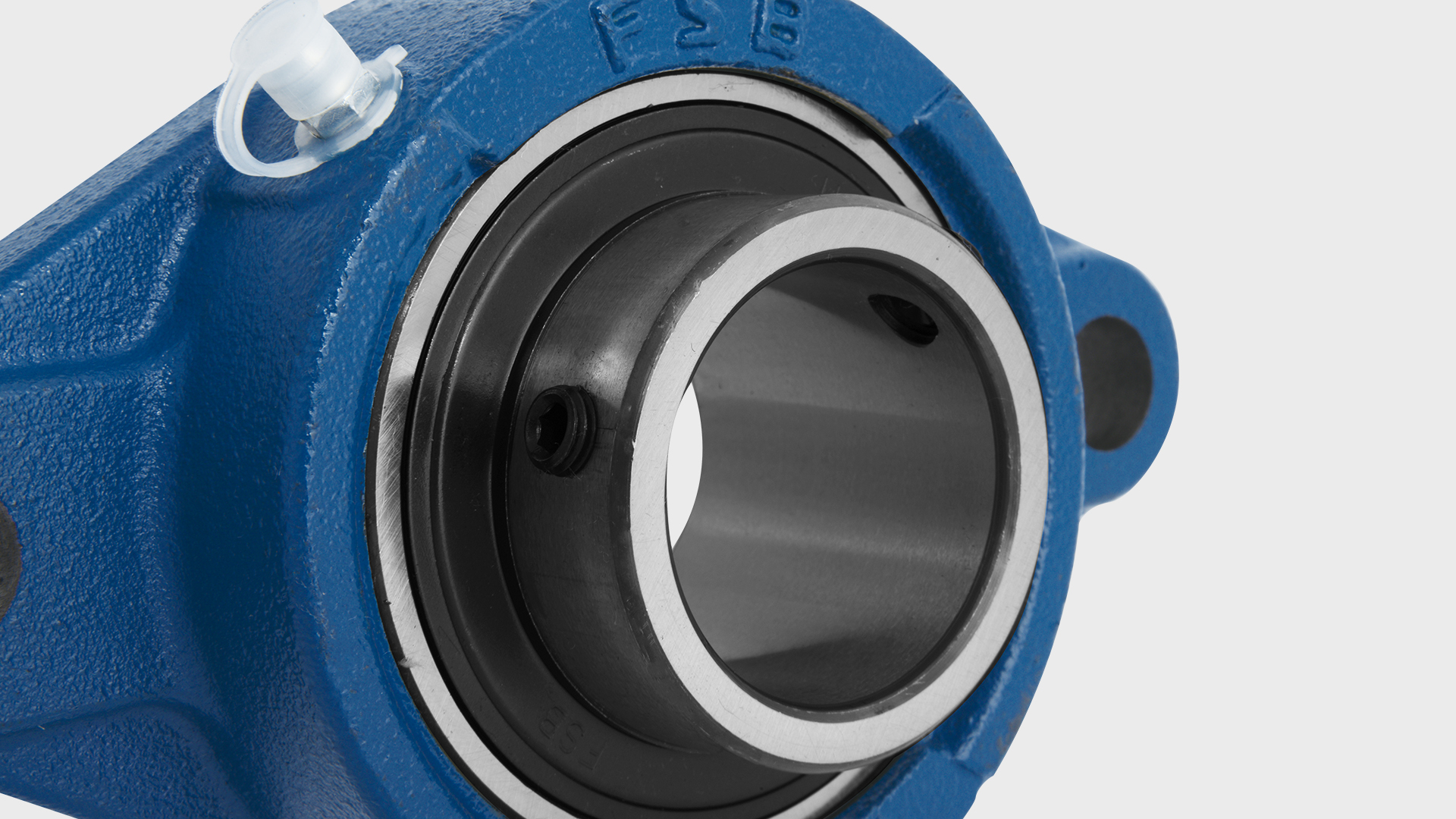

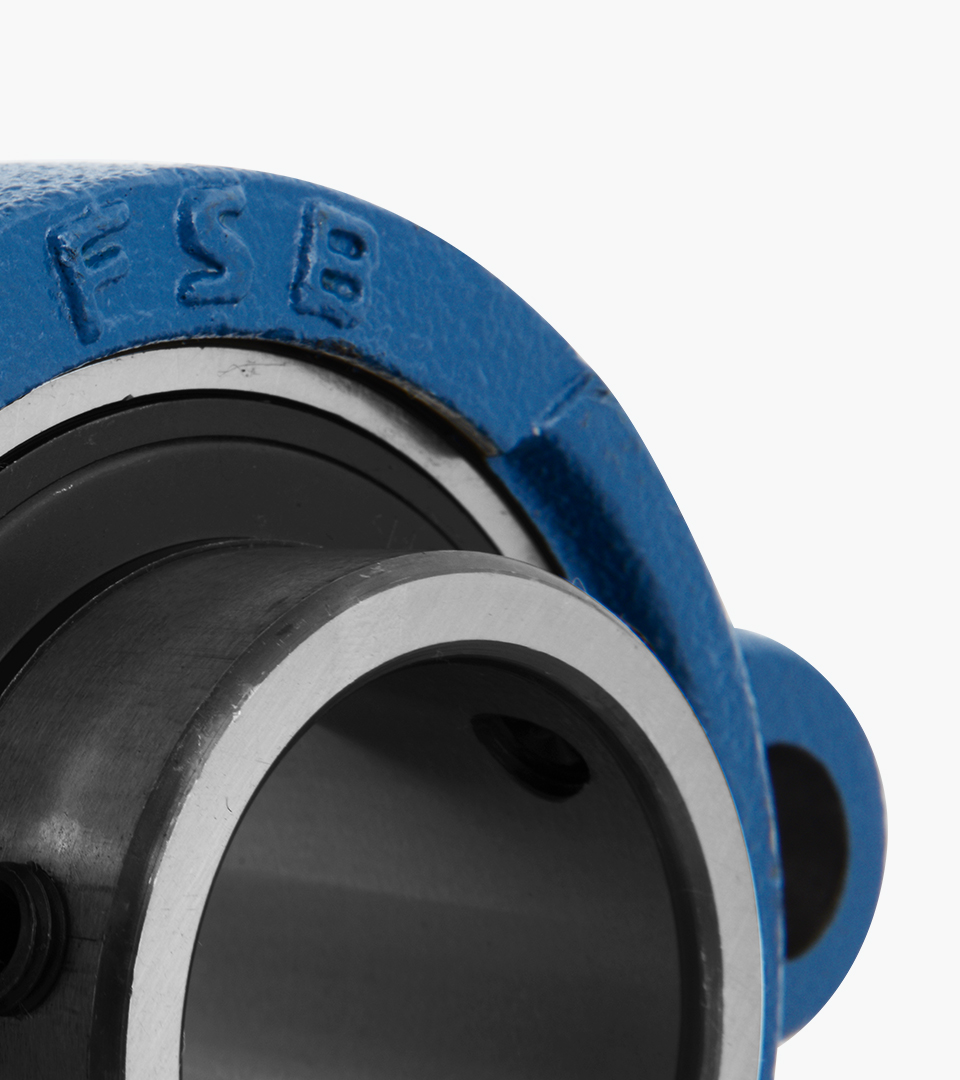

精湛的细节

精湛的细节

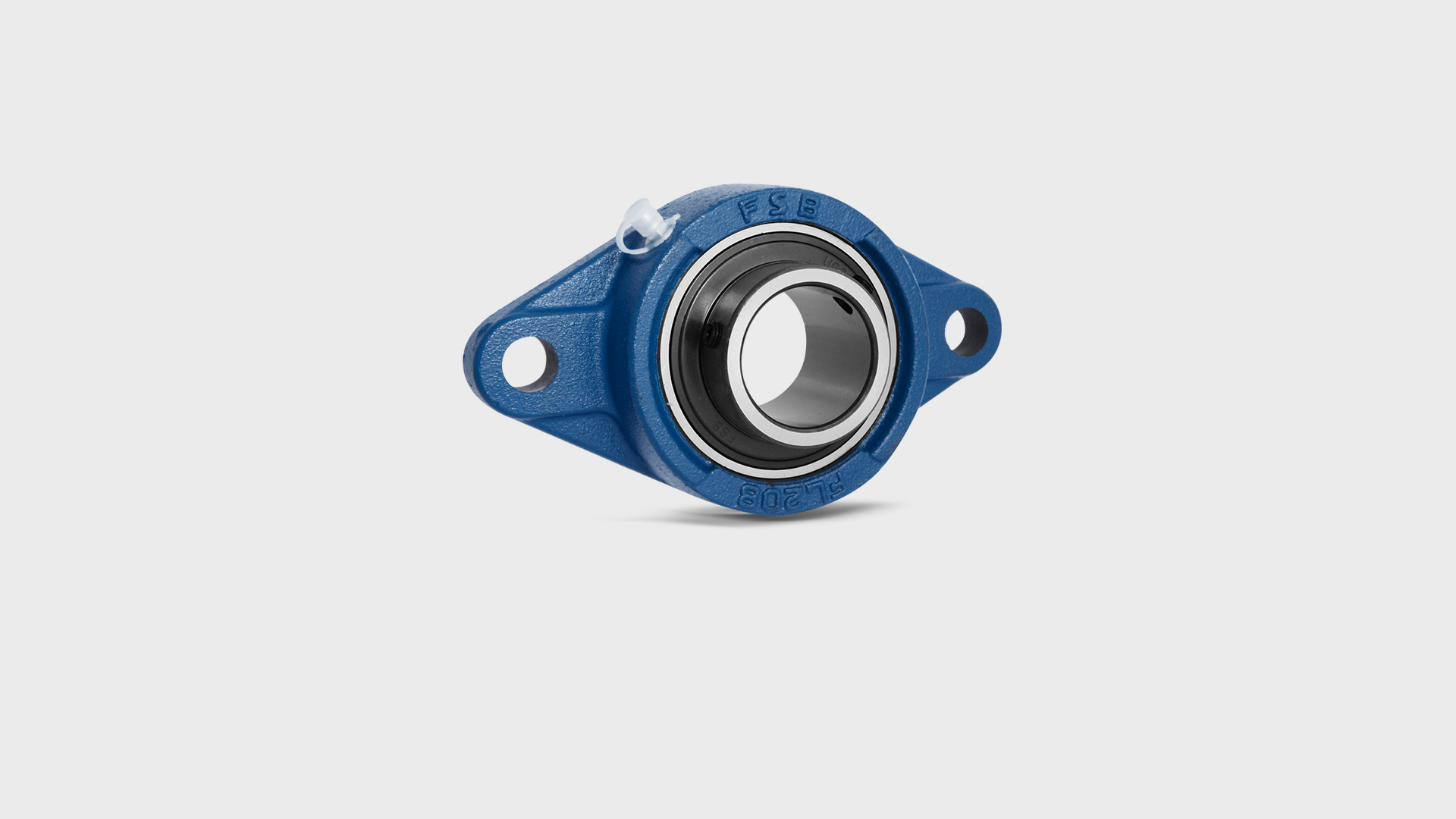

UCFL200
带座轴承型号
轴 径 尺 寸 螺 栓 轴承芯型号
 轴承座型号
 基本额定载荷
 疲劳极限载荷
 极限转速(SRS)
轴的配合公差(h6)

 重量
mm in mm / in mm in —
 —
 动载荷
 静载荷
 m

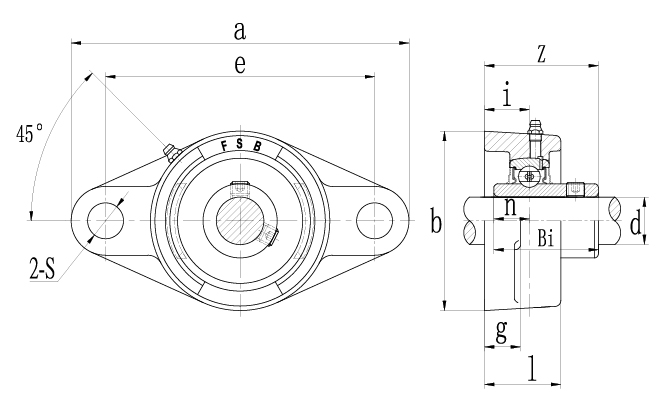

d a e i g l S b Z Bi n Cr
 Cor
 Cur
 r / min
 ≈Kg
KN
UCFL201 12 —
 113 90 15 12 25.5 12 60 33.3
 31.0
 12.7 M10 —
 UC201 FL204
 12.70
 6.55
 0.28
 8500
 0.5
UCFL201-8
 —
 1/2 4-7/16 3-35/64 19/32 15/32 1 15/32 2-3/8 1.3110 1.2205 0.5000 —
 3/8 UC201-8
UCFL202
 15 —
 113
 90
 15
 12
 25.5
 12
 60
 33.3
 31.0
 12.7
 M10
 —
 UC202
 FL204
 12.70
 6.55
 0.28
 8500
 0.5
UCFL202-10
 —
 5/8 4-7/16
 3-35/64
 19/32
 15/32
 1
 15/32
 2-3/8
 1.3110
 1.2205
 0.5000
 —
 3/8
 UC202-10
UCFL203
 17 —
 113
 90
 15
 12
 25.5
 12
 60
 33.3
 31.0
 12.7
 M10
 —
 UC203
 FL204
 12.70
 6.55
 0.28
 8500
 0.5
UCFL203-11
 —
 11/16 4-7/16
 3-35/64
 19/32
 15/32
 1
 15/32
 2-3/8
 1.3110
 1.2205
 0.5000
 —
 3/8
 UC203-11
UCFL204
 20 —
 113
 90
 15
 12
 25.5
 12
 60
 33.3
 31.0
 12.7
 M10
 —
 UC204
 FL204 12.70 6.55 0.28 8500 0.5
UCFL204-12
 —
 3/4 4-7/16
 3-35/64
 19/32
 15/32
 1
 15/32
 2-3/8
 1.3110
 1.2205
 0.5000
 —
 3/8
 UC204-12
UCFL205
 25 —
 130 99 16 14 27 16 68 35.7 34.0 14.3
 M14
 —
 UC205
 FL205 14.00 7.80 0.34 7000 0.6
UCFL205-14
 —
 7/8 5-1/8 3-57/64 5/8 9/16 1-1/16 5/8 2-11/16 1.4055 1.3386 0.5630 —
 1/2
 UC205-14
UCFL205-15
 —
 15/16 UC205-15
UCFL205-16
 —
 1 UC205-16
UCFL206
 30 —
 148 117 18 14 31 16 80 40.2 38.1 15.9 M14
 —
 UC206
 FL206 19.50 11.20 0.48 6300 0.9
UCFL206-18
 —
 1-1/8 5-13/16 4-39/64 45/64 9/16 1-7/32 5/8 3-5/32 1.5827 1.5000 0.6260 —
 1/2
 UC206-18
UCFL206-19
 —
 1-3/16 UC206-19
UCFL206-20
 —
 1-1/4
 UC206-20
UCFL207
 35 —
 161 130 19 16 34 16 90 44.4 42.9 17.5 M14
 —
 UC207
 FL207 25.50 15.30 0.66 5300 1.2
UCFL207-20
 —
 1-1/4 6-11/32 5-1/8 3/4 5/8 1-11/32 5/8 3-17/32 1.7480 1.6890 0.6890 —
 1/2
 UC207-20
UCFL207-21
 —
 1-5/16 UC207-21
UCFL207-22
 —
 1-3/8 UC207-22
UCFL207-23
 —
 1-7/16 UC207-23
UCFL208
 40 —
 175 144 21 16 36 16 100 51.2 49.2 19.0 M14 —
 UC208
 FL208 30.70 19.0 0.80 4800 1.6
UCFL208-24
 —
 1-1/2 6-7/8 5-43/64 53/64 5/8 1-13/32 5/8 3-15/16 2.0157 1.9370 0.7480 —
 1/2 UC208-24
UCFL208-25
 —
 1-9/16 UC208-25
UCFL209
 45 —
 188 148 22 18 38 19 108 52.2 49.2 19.0 M16
 —
 UC209
 FL209 33.20 21.60 0.92 4300 1.9
UCFL209-26
 —
 1-5/8 7-13/32 5-53/64 55/64 23/32 1-1/2 3/4 4-1/4 2.0551 1.9370 0.7480 —
 5/8
 UC209-26
UCFL209-27
 —
 1-11/16 UC209-27
UCFL209-28
 —
 1-3/4 UC209-28
UCFL210
 50 —
 197 157 22 18 40 19 115 54.6 51.6 19.0 M16
 —
 UC210
 FL210 35.10 23.20 0.98 4000 2.2
UCFL210-30
 —
 1-7/8 7-3/4 6-3/16 55/64 23/32 1-9/16 3/4 4-17/32 2.1496 2.0315 0.7480 —
 5/8
 UC210-30
UCFL210-31
 —
 1-15/16 UC210-31
UCFL210-32
 —
 2 UC210-32
UCFL211
 55 —
 224 184 25 20 43 19 130 58.4 55.6 22.2 M16 —
 UC211
 FL211 43.60 29.00 1.25 3600 3.2
UCFL211-32
 —
 2 8-13/16 7-1/4 63/64 25/32 1-11/16 3/4 5-1/8 2.2992 2.1890 0.8740 —
 5/8 UC211-32
UCFL211-34
 —
 2-1/8 UC211-34
UCFL211-35
 —
 2-3/16 UC211-35
UCFL212
 60 —
 250 202 29 20 48 23 140 68.7 65.1 25.4 M20
 —
 UC212
 FL212 52.70 36.00 1.53 3400 4.1
UCFL212-36
 —
 2-1/4 9-27/32 7-61/64 1-9/64 25/32 1-7/8 29/32 5-1/2 2.7047 2.5630 1.0000 —
 3/4
 UC212-36
UCFL212-38
 —
 2-3/8 UC212-38
UCFL212-39
 —
 2-7/16 UC212-39
UCFL213
 65 —
 258 210 30 24 50 23 155 69.7 65.1 25.4 M20
 —
 UC213
 FL213 57.20 40.00 1.70 3000 5.1
UCFL213-40
 —
 2-1/2 10-5/32 8-17/64 1-3/16 15/16 1-31/32 29/32 6-3/32 2.7441 2.5630 1.0000 —
 3/4
 UC213-40
UCFL214
 70 —
 265 216 31 24 54 23 160 75.4 74.6 30.2 M20
 —
 UC214
 FL214 62.40 45.00 1.86 2800 5.9
UCFL214-44
 —
 2-3/4 10-7/16 8-1/2 1-7/32 15/16 2-1/8 29/32 6-5/16 2.9685 2.9370 1.1890 —
 3/4
 UC214-44
UCFL215
 75 —
 275 225 35 22 57 23 165 79.5 77.8 33.3 M20 —
 UC215
 FL215 66.30 49.00 2.04 2600 6.4
UCFL215-48
 —
 3 10-13/16 8-55/64 1-3/8 55/64 2-1/4 29/32 6-1/2 3.1299 3.0630 1.3110 —
 3/4 UC215-48
UCFL216
 80 —
 290 233 35 23 59 25 180 84.3 82.6 33.3 M22
 —
 UC216
 FL216 72.80 53.00 2.16 2400 7.9
UCFL216-50
 —
 3-1/8 11-13/32 9-11/64 1-3/8 29/32 2-21/64 63/64 7-3/32 3.3189 3.2520 1.3110 —
 7/8
 UC216-50
UCFL217
 85 —
 305 248 36 26 63 25
 190
 87.6
 85.7 34.1 M22
 —
 UC217
 FL217 83.20 62.00 2.40 2200 9.6
UCFL217-52
 —
 3-1/4 12 9-49/64 1-27/64 1-1/32 2-15/32 63/64 7-15/32 3.4488 3.3740 1.3425 —
 7/8
 UC217-52
UCFL218
 90 —
 320 265 40 26 68 25 205 96.3 96.0 39.7 M22 —
 UC218
 FL218 95.60 72.00 2.70 2000 12.1
UCFL218-56
 —
 3-1/2 12-19/32 10-7/16 1-37/64 1-1/32 2-43/64 63/64 8-1/16 3.7913 3.7795 1.5630 —
 7/8 UC218-56
