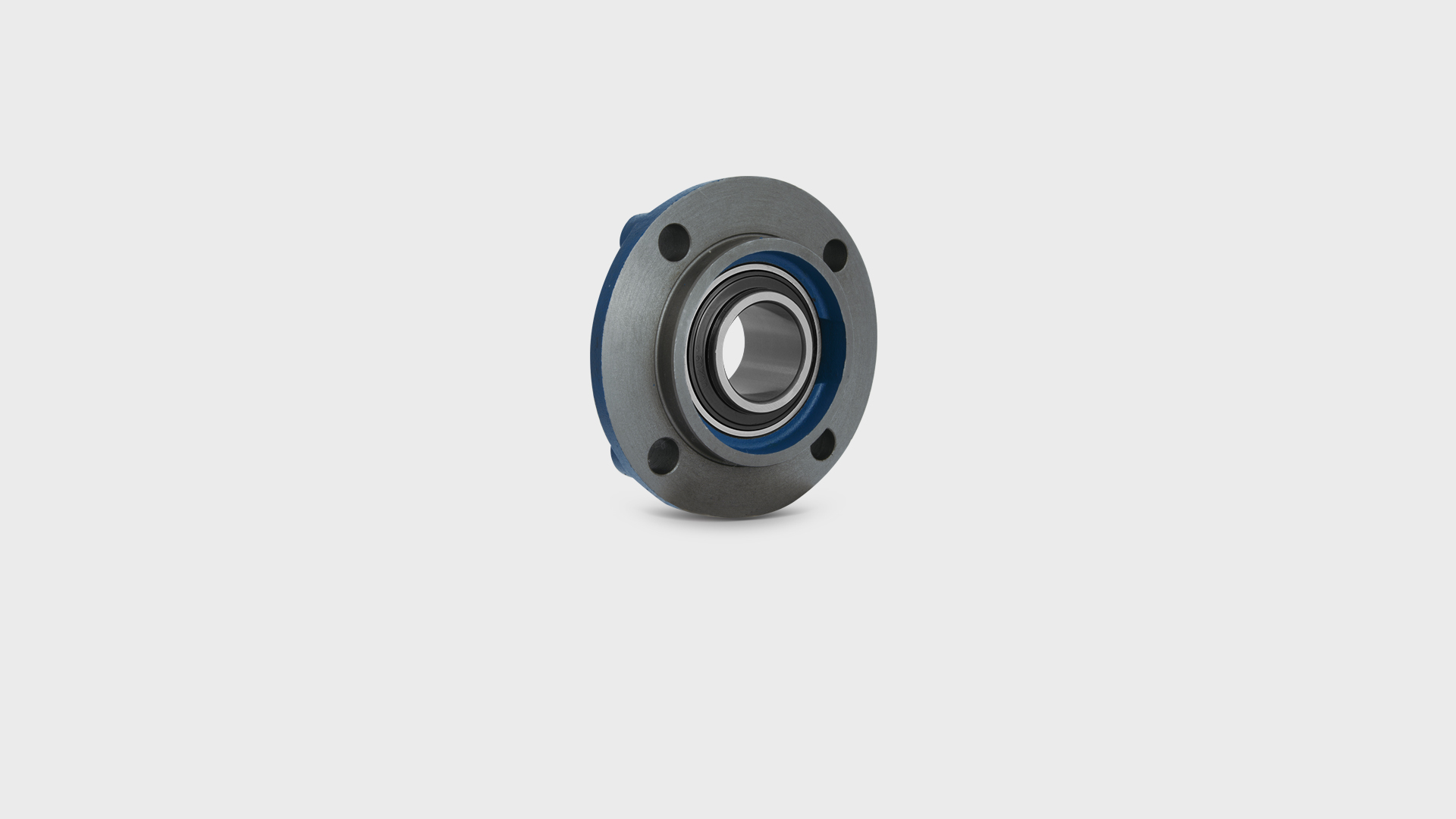

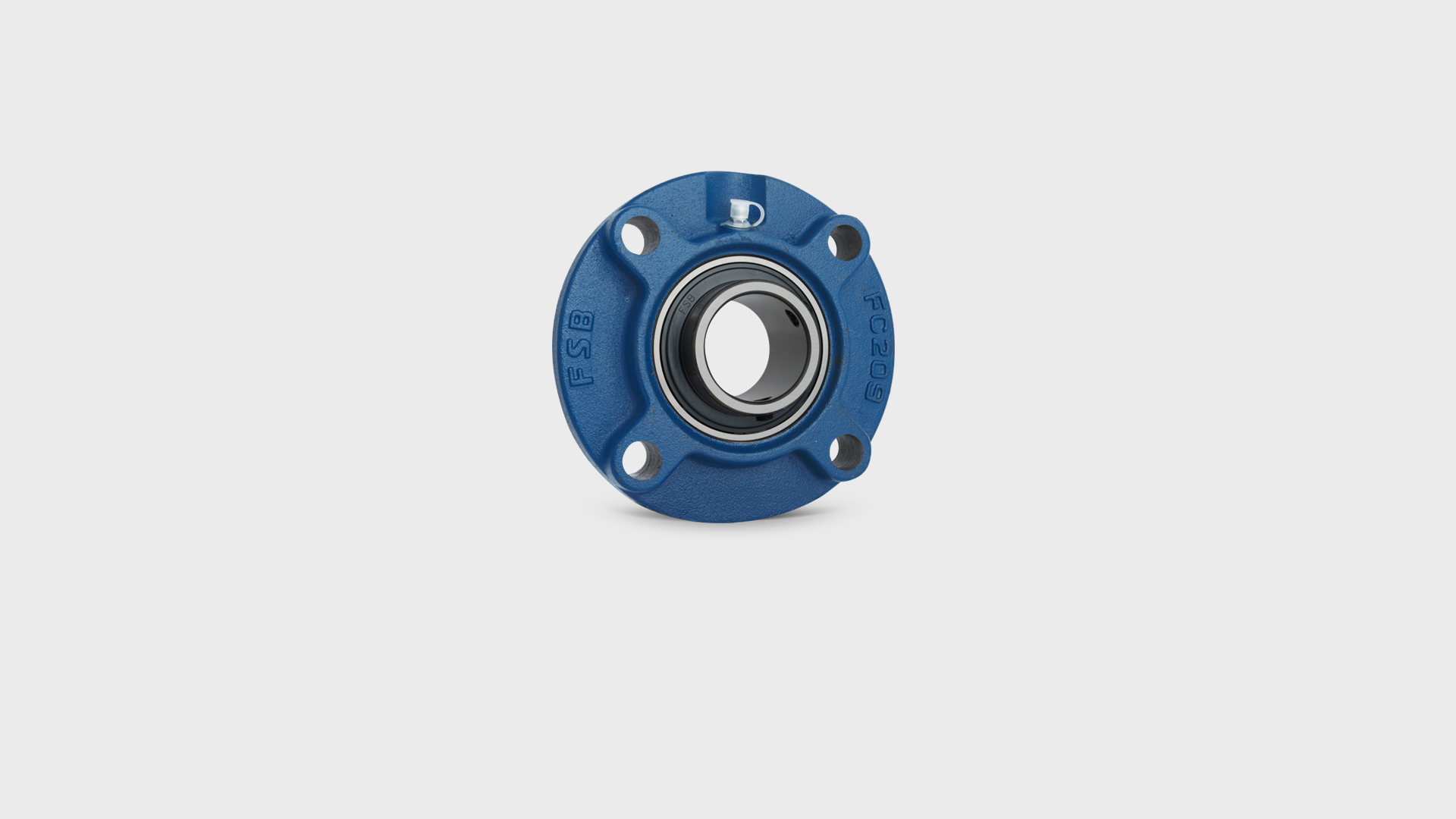

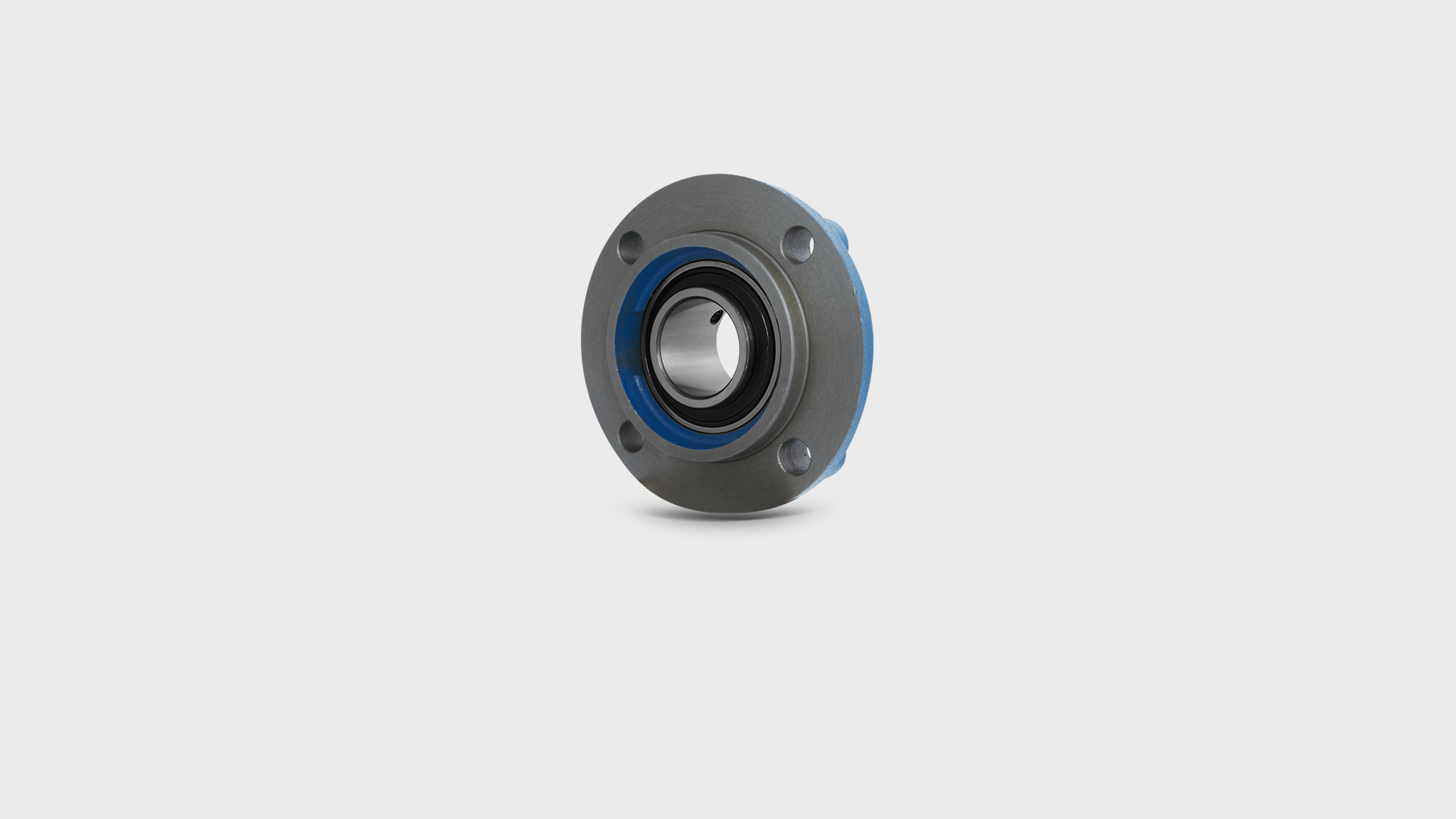

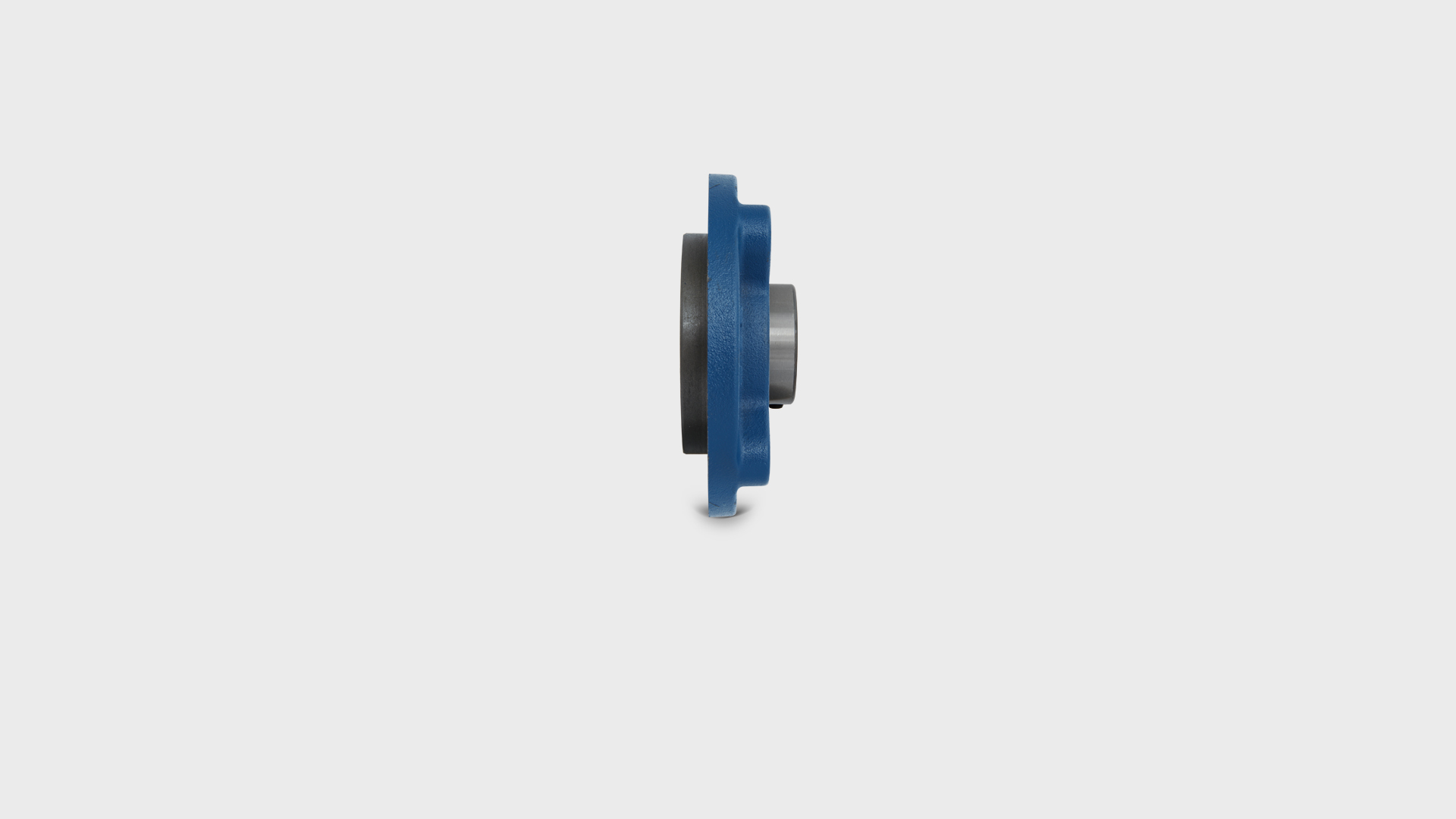

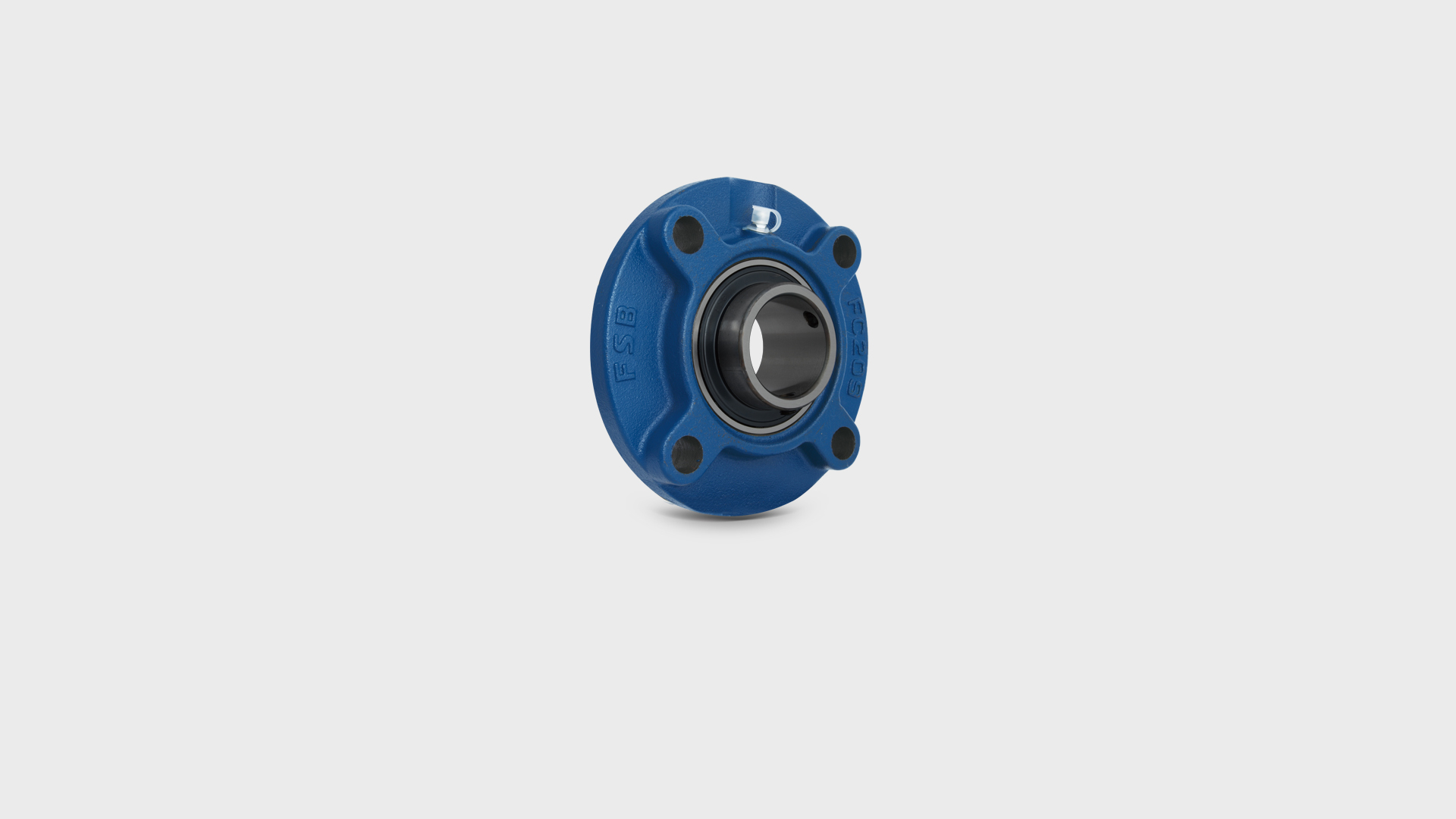

UCFC200

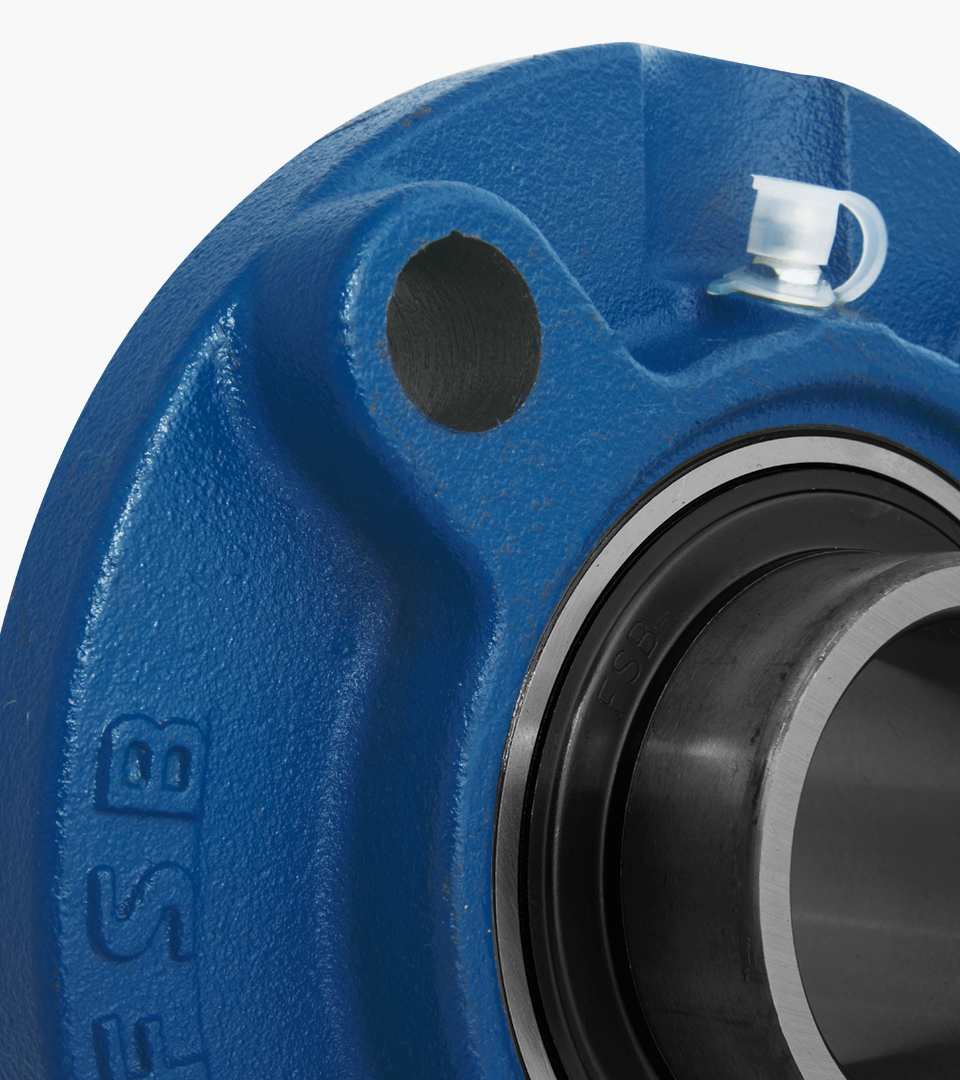

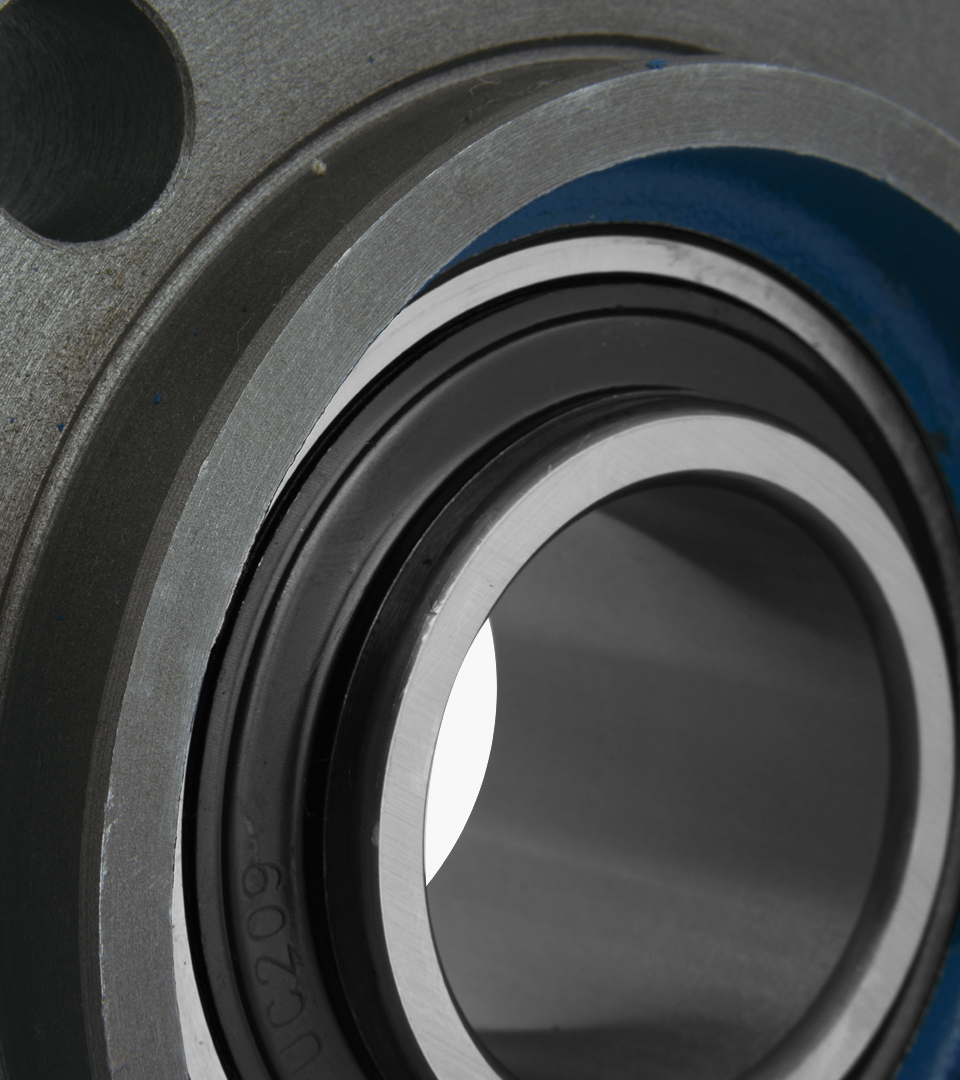

精湛的细节

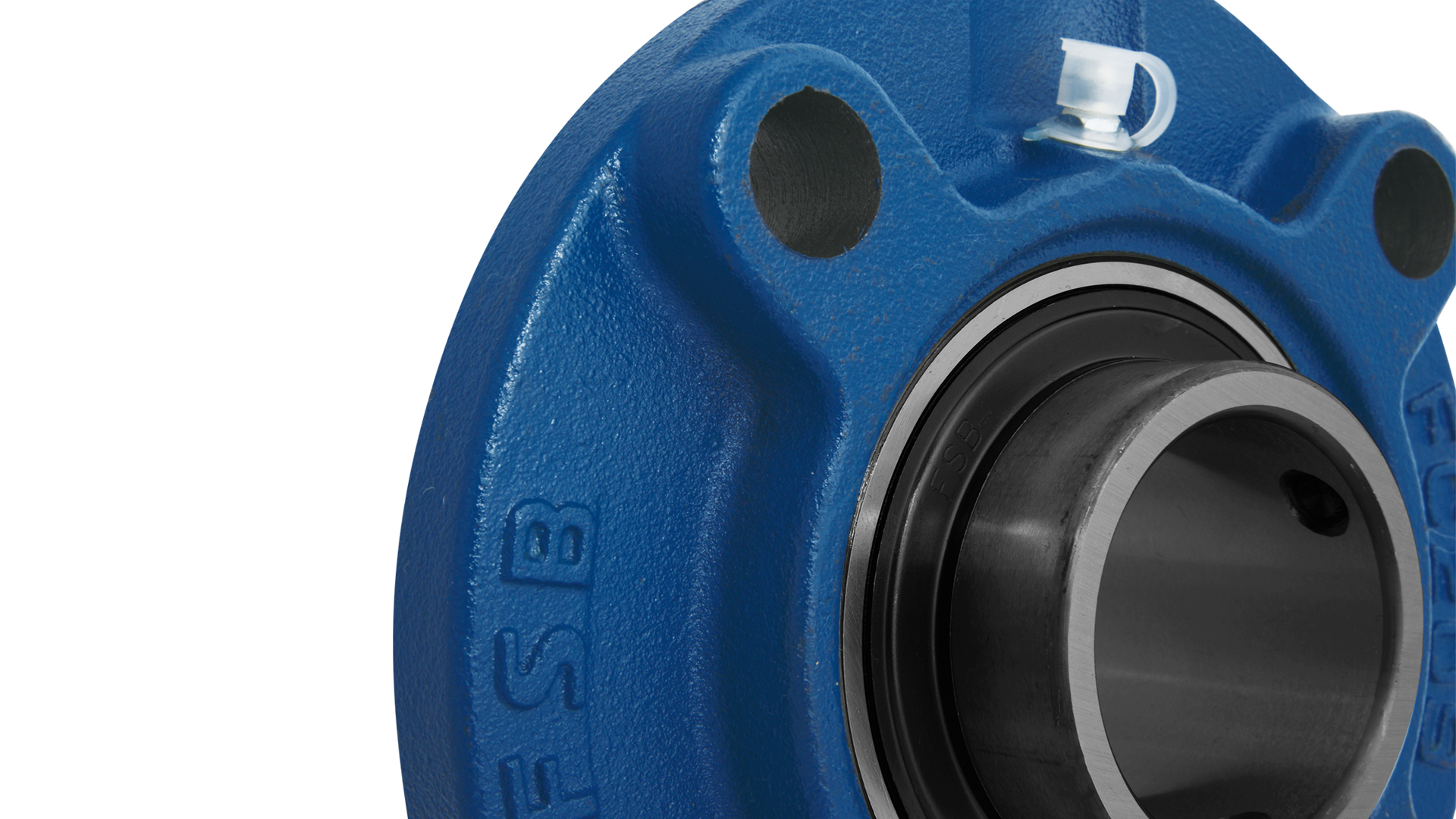

精湛的细节

UCFC200
带座轴承型号
轴 径 尺 寸 螺 栓 轴承芯型号
 轴承座型号
 基本额定载荷
 疲劳载荷极限
 极限转速(SRS)
轴的配合公差(h6)
 重量
mm in mm / in mm in —
 —
 动载荷
 静载荷
 m

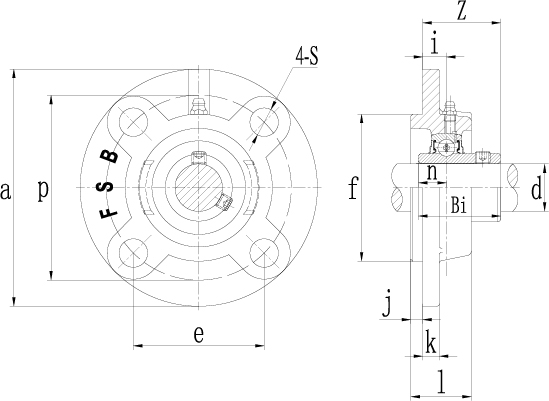

d a p e i l S j k g f Z Bi n Cr
 Cor
 Cur
 r / min
 ≈Kg
KN
UCFC201 12 — 100 78 55.1 10 25.5 12 5 7 20.5 62 28.3 31.0 12.7 M10 —
 UC201 FC204 12.7 6.55 0.28 8500 0.8
UCFC201-8
 —
 1/2 3-15/16 3-5/64 2-11/64 25/64 1 15/32 13/64 9/32 13/16 2.4409 1.1142 1.2205 0.5000 —
 3/8 UC201-8
UCFC202
 15 —
 100 78 55.1 10 25.5 12 5 7 20.5 62 28.3
 31.0 12.7 M10
 —
 UC202
 FC204
 12.7
 6.55
 0.28
 8500
 0.8
UCFC202-10
 —
 5/8 3-15/16
 3-5/64
 2-11/64
 25/64
 1
 15/32
 13/64
 9/32
 13/16
 2.4409
 1.1142
 1.2205
 0.5000
 —
 3/8
 UC202-10
UCFC203
 17 —
 100
 78
 55.1
 10
 25.5
 12
 5
 7
 20.5
 62
 28.3
 31.0
 12.7
 M10
 —
 UC203
 FC204
 12.7
 6.55
 0.28
 8500
 0.8
UCFC203-11
 —
 11/16 3-15/16
 3-5/64
 2-11/64
 25/64
 1
 15/32
 13/64
 9/32
 13/16
 2.4409
 1.1142
 1.2205
 0.5000
 —
 3/8
 UC203-11
UCFC204
 20 —
 100
 78
 55.1
 10
 25.5
 12
 5
 7
 20.5
 62
 28.3
 31.0
 12.7
 M10
 —
 UC204
 FC204
 12.7
 6.55
 0.28
 8500
 0.8
UCFC204-12
 —
 3/4 3-15/16
 3-5/64
 2-11/64
 25/64
 1
 15/32
 13/64
 9/32
 13/16
 2.4409
 1.1142
 1.2205
 0.5000
 —
 3/8
 UC204-12
UCFC205
 25 —
 115 90 63.6 10 27 12 6 7 21 70 29.7 34.0 14.3 M10
 —
 UC205
 FC205
 14.00 7.80 0.34 7000 1.0
UCFC205-14
 —
 7/8 4-17/32 3-35/64 2-1/2 25/64 1-1/16 15/32 15/64 9/32 53/64 2.7559 1.1693 1.3386 0.5630 —
 3/8
 UC205-14
UCFC205-15
 —
 15/16 UC205-15
UCFC205-16
 —
 1 UC205-16
UCFC206
 30 —
 125 100 70.7 10 31 12 8 8 23 80 32.2 38.1 15.9 M10
 —
 UC206
 FC206
 19.50 11.20 0.48 6300 1.4
UCFC206-18
 —
 1-1/8 4-29/32 3-15/16 2-25/32 25/64 1-7/32 15/32 5/16 5/16 29/32 3.1496 1.2677 1.5000 0.6260 —
 3/8
 UC206-18
UCFC206-19
 —
 1-3/16 UC206-19
UCFC206-20
 —
 1-1/4
 UC206-20
UCFC207
 35 —
 135 110 77.8 11 34 14 8 9 26 90 36.4 42.9 17.5 M12 —
 UC207
 FC207
 25.50 15.30 0.66 5300 1.7
UCFC207-20
 —
 1-1/4 5-5/16 4-21/64 3-1/16 7/16 1-11/32 35/64 5/16 11/32 1-1/32 3.5433 1.4331 1.6890 0.6890 —
 7/16 UC207-20
UCFC207-21
 —
 1-5/16 UC20721
UCFC207-22
 —
 1-3/8 UC207-22
UCFC207-23
 —
 1-7/16 UC207-23
UCFC208
 40 —
 145 120 84.8 11 36 14 10 9 26 100 41.2 49.2 19.0 M12 —
 UC208
 FC208
 30.7 19.00 0.80 4800 2.0
UCFC208-24
 —
 1-1/2 5-23/32 4-23/32 3-11/32 7/16 1-27/64 35/64 25/64 11/32 1-1/32 3.9370 1.6220 1.9370 0.7480 —
 7/16
 UC208-24
UCFC208-25
 —
 1-9/16 UC208-25
UCFC209
 45 —
 160 132 93.3 10 38 16 12 14 26 105 40.2 49.2 19.0 M14 —
 UC209
 FC209
 33.2 21.6 0.92 4300 2.8
UCFC209-26
 —
 1-5/8 6-5/16 5-13/64 3-43/64 25/64 1-1/2 5/8 15/32 9/16 1-1/32 4.1339 1.5827 1.9370 0.7480 —
 1/2 UC209-26
UCFC209-27
 —
 1-11/16 UC209-27
UCFC209-28
 —
 1-3/4 UC209-28
UCFC210
 50 —
 165 138 97.6 10 40 16 12 14 28 110 42.6 51.6 19.0 M14
 —
 UC210
 FC210
 35.10 23.20 0.98 4000 3.0
UCFC210-30
 —
 1-7/8 6-1/2
 5-7/16 3-27/32 25/64 1-9/16 5/8 15/32 9/16 1-3/32 4.3307 1.6772 2.0315 0.7480 —
 1/2 UC210-30
UCFC210-31
 —
 1-15/16 UC210-31
UCFC211
 55 —
 185 150 106.1 13 43 19 12 15 31 125 46.4 55.6 22.2 M16 —
 UC211
 FC211
 43.60 29.00 1.25 3600 4.0
UCFC211-32
 —
 2 7-9/32 5-29/32 4-11/64 33/64 1-11/16 3/4 15/32 19/32 1-7/32 4.9213 1.8268 2.1890 0.8740 —
 5/8 UC211-32
UCFC211-34
 —
 2-1/8 UC211-34
UCFC211-35
 —
 2-3/16 UC211-35
UCFC212
 60 —
 195 160 113.1 17 48 19 12 15 36 135 56.7 65.1 25.4 M16
 —
 UC212
 FC212
 52.70 36.00 1.53 3400 4.7
UCFC212-36
 —
 2-1/4 7-11/16 6-19/64 4-29/64 43/64 1-7/8 3/4 15/32 19/32 1-27/64 5.3150 2.2323 2.5630 1.0000 —
 5/8
 UC212-36
UCFC212-38
 —
 2-3/8 UC21238
UCFC212-39
 —
 2-7/16 UC212-39
UCFC213
 65 —
 205 170 120.2 16 50 19 14 15 36 145 55.7 65.1 25.4 M16
 —
 UC213
 FC213
 57.20 40.00 1.70 3000 5.4
UCFC213-40
 —
 2-1/2 8-1/16 6-11/16 4-47/64 5/8 1-31/32 3/4 35/64 19/32 1-27/64 5.7087 2.1929 2.5630 1.0000 —
 5/8
 UC213-40
UCFC214
 70 —
 215 177 125.1 17 54 19 14 18 40 150 61.4 74.6 30.2 M16
 —
 UC214
 FC214
 62.40 45.00 1.86 2800 6.8
UCFC214-44
 —
 2-3/4 8-15/32 6-31/32 4-59/64 43/64 2-1/8 3/4 35/64 23/32 1-9/16 5.9055 2.4173 2.9370 1.1890 —
 5/8
 UC214-44
UCFC215
 75 —
 220 184 130.1 18 56 19 16 18 40 160 62.5 77.8 33.3 M16
 —
 UC215
 FC215
 66.30 49.00 2.04 2600 7.3
UCFC215-48
 —
 3 8-21/32 7-1/4 5-1/8 45/64 2-7/32 3/4 5/8 23/32 1-9/16 6.2992 2.4606 3.0630 1.3110 —
 5/8
 UC215-48
UCFC216
 80 —
 240 200 141.4 18 58 23 16 18 42 170 67.3 82.6 33.3 M20 —

UC216


 FC216
 72.80 53.00 2.16 2400 8.9
—
 —
 9-7/16 7-7/8 5-9/16 45/64 2-9/32 29/32 5/8 23/32 1-21/32 6.6929 2.6496 3.2520 1.3110 —
 3/4
UCFC217
 85 —
 250 208 147.1 18 63 23 18 20 45 180 69.6 85.7 34.1 M20
 —
 UC217
 FC217
 83.20 62.00 2.40 2200 10.4
UCFC217-52
 —
 3-1/4 9-27/32
 8-3/16
 5-51/64
 45/64
 2-15/32
 29/32
 45/64
 25/32
 1-25/32
 7.0886 2.7402 3.3740 1.3425 —
 3/4
 UC217-52
UCFC218
 90 —
 265 220 155.5 22 68 23 18 20 50 190 78.3 96.0 39.7 M20
 —
 UC218
 FC218
 95.60 72.00 2.70 2000 13.0
UCFC218-56
 —
 3-1/2 10-7/16 8/21/32 6-1/8 55/64 2-11/16 29/32 45/64 25/32 1-31/32 7.4803 3.0827 3.7795 1.5630 —
 3/4
 UC218-56
